Centrifugal metal casting lets you create strong, high-quality metal parts by spinning a mold at high speeds. When you pour molten metal into the rotating mold, the force pushes the metal against the walls. This method helps you make dense parts without air bubbles. For example, you might use centrifugal metal casting to produce Miniature Die Cast models or even Die Casting Aluminum Parts for machines.

You can rely on this process to make parts that need to be tough and reliable.

Key Takeaways

• Centrifugal metal casting uses a spinning mold to push molten metal outward, creating strong, dense parts with fewer air bubbles and defects.
• There are three main types: true centrifugal casting for hollow cylinders, semi-centrifugal casting for solid round parts, and centrifuge casting for small detailed shapes.
• Machine orientation—vertical, horizontal, or vacuum—affects the shape and quality of parts, with each suited for different sizes and uses.
• This casting method offers high strength, uniform wall thickness, smooth surfaces, and material savings, making it ideal for pipes, automotive, aerospace, and specialized parts.
• Limitations include shape restrictions mostly to round parts, higher equipment costs, and the need for skilled operation to avoid defects.

Centrifugal Metal Casting Process

Mold Preparation

You start the centrifugal metal casting process by preparing the mold. The mold shapes the final part, so you must choose the right material. Most molds use steel, cast iron, or graphite. You clean the mold to remove dust and debris. This step helps you avoid defects in the finished product.

You often coat the inside of the mold with a special material. This coating prevents the molten metal from sticking. It also helps you remove the part easily after casting. Some coatings can improve the surface finish of your part.

Tip: Always check the mold for cracks or damage before you begin. A damaged mold can ruin your casting.

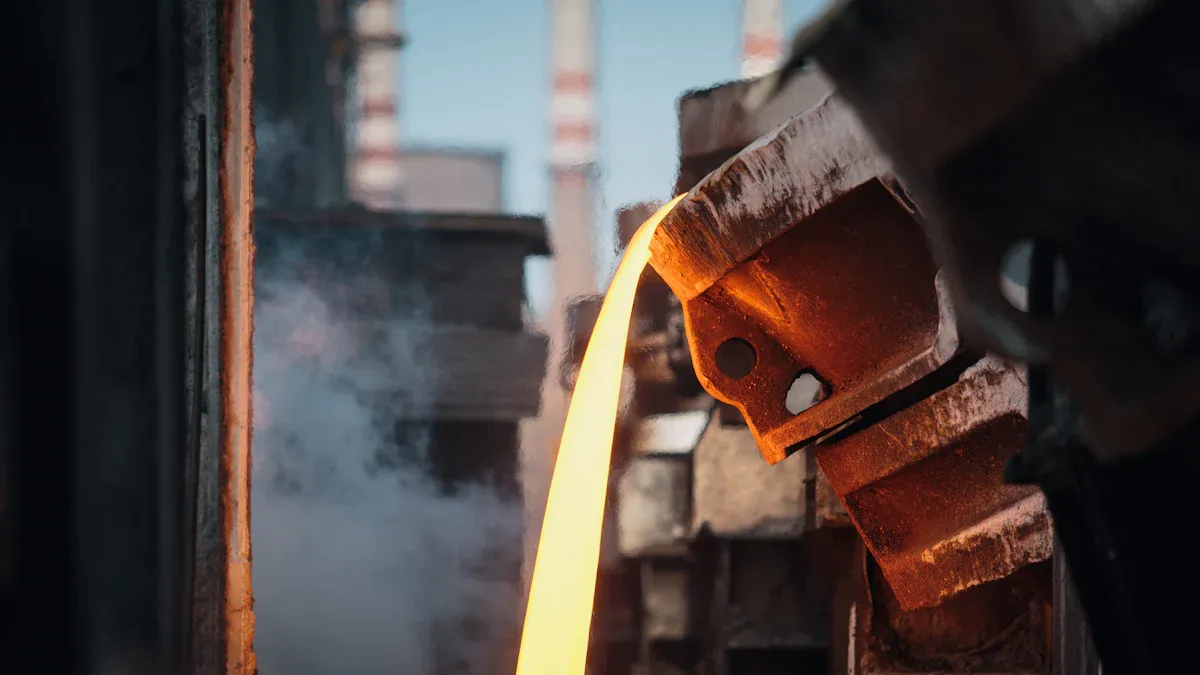

Metal Melting and Pouring

Next, you melt the metal you want to cast. You can use furnaces that heat the metal until it becomes liquid. The temperature depends on the type of metal. For example, aluminum melts at a lower temperature than steel.

Once the metal melts, you pour it into the spinning mold. You must pour the metal quickly and steadily. This helps you fill the mold evenly. If you pour too slowly, the metal may cool and solidify before filling the mold.

Here is a simple table showing common metals and their melting points:

Spinning and Solidification

After pouring, you spin the mold at high speed. The centrifugal force pushes the molten metal against the mold walls. This force removes air bubbles and impurities. You get a dense and strong part.

The spinning continues as the metal cools and hardens. The outer layer solidifies first. The inside cools last. This process gives you a part with a smooth surface and few defects.

Centrifugal metal casting lets you make parts with excellent strength and durability. You can use this method for pipes, rings, and other round shapes.

Cooling and Extraction

After the metal solidifies in the spinning mold, you need to let it cool down. Cooling is important because it helps the metal become strong and stable. You usually stop the spinning once the metal has hardened enough to keep its shape.

You can speed up cooling by using water or air. Some molds have cooling channels that let water flow around them. This helps lower the temperature faster. If you cool the metal too quickly, you might cause cracks. If you cool it too slowly, the part may not have the right strength.

Once the part has cooled, you remove it from the mold. You might use special tools to help you take the part out. Sometimes, the part shrinks a little as it cools. This makes it easier to extract.

Note: Always wear safety gear when handling hot metal and molds. The parts can stay hot for a long time after casting.

Finishing Operations

After you take the part out of the mold, you need to finish it. Finishing operations help you get the final shape and surface quality you want. You might see rough edges or extra metal on the part. These come from the casting process.

Here are some common finishing steps:

1. Trimming: You cut off any extra metal or rough edges.
2. Machining: You use machines to make the part smooth or to add holes and threads.
3. Surface Cleaning: You remove any leftover mold coating or dirt. You can use sandblasting or chemical cleaning.
4. Inspection: You check the part for cracks, holes, or other defects. You want to make sure the part meets your quality standards.

You can use centrifugal metal casting to make parts that need very little finishing. The process gives you a smooth surface and a strong, dense part. Still, finishing operations help you get the best results for your project.

If you want high-quality parts, do not skip the finishing steps. Careful finishing makes your parts last longer and work better.

Types of Centrifugal Metal Casting

When you explore centrifugal metal casting, you will find three main types. Each type uses spinning molds, but the way you use the mold and the shape of the part can change.

True Centrifugal Casting

You use true centrifugal casting when you want to make hollow, cylindrical parts. The mold spins around its axis, and you pour molten metal into the center. The spinning forces the metal outward, so it sticks to the mold walls. You do not need a core to form the hollow center. This method works well for pipes, tubes, and rings. You can make parts with very dense walls and few impurities.

Tip: True centrifugal casting helps you avoid air pockets in the metal. You get strong, reliable parts for high-stress uses.

Semi-Centrifugal Casting

You use semi-centrifugal casting when you need solid parts with a round shape. The mold still spins, but you add a core to create the center of the part. The centrifugal force pushes the metal into the mold, filling every detail. This method works for items like gear blanks, pulleys, and wheels. You get a dense outer layer, which gives your part extra strength where you need it most.

• Common uses for semi-centrifugal casting:
  • Brake drums
  • Flywheels
  • Large gears

Centrifuge Casting

You use centrifuge casting for parts that are not round. In this method, you place several small molds around a spinning arm. You pour molten metal into a central sprue, and the spinning arm pushes the metal into each mold. This process lets you make many small, detailed parts at once. You can use it for jewelry, dental parts, and small machine components.

Note: Centrifuge casting gives you fine details and smooth surfaces, even for complex shapes.

Centrifugal Metal Casting Machine Orientations

When you choose a centrifugal casting machine, you need to think about how the mold spins. The orientation of the machine affects the shape and quality of your parts. You can pick from vertical, horizontal, or vacuum setups. Each one works best for certain shapes and sizes.

Vertical Centrifugal Casting

In vertical centrifugal casting, you place the mold upright. The axis of rotation stands straight up and down. You pour molten metal into the top of the spinning mold. Gravity and centrifugal force work together to fill the mold. This setup helps you make short, thick-walled cylinders, rings, and bushings.

• Best for: Rings, gear blanks, and small cylinders
• Advantages:
  • Easy to remove the finished part
  • Good for small to medium sizes

Tip: Use vertical casting when you want to avoid uneven wall thickness in your parts.

Horizontal Centrifugal Casting

With horizontal centrifugal casting, you lay the mold on its side. The axis of rotation runs sideways. You pour molten metal into one end of the spinning mold. The force pushes the metal outward to form long, hollow shapes. This method works well for pipes, tubes, and sleeves.

• Best for: Pipes, tubes, and long cylinders
• Advantages:
  • Makes long parts with even walls
  • Handles large diameters

A simple table shows the difference:

Vacuum Centrifugal Casting

Vacuum centrifugal casting uses a sealed chamber. You remove air from the chamber before pouring the metal. The vacuum stops air bubbles and reduces oxidation. You get parts with very few defects and a smooth surface. This method helps you cast metals that react with air, like titanium or special alloys.

• Best for: High-value alloys, aerospace parts, and jewelry
• Advantages:
  • Fewer impurities
  • Better surface finish

Note: Vacuum casting costs more, but you get the highest quality parts.

Advantages and Limitations of Centrifugal Metal Casting

Key Advantages

When you use centrifugal metal casting, you get several important benefits. This process helps you make strong and reliable parts. Here are some key advantages:

• High Density and Strength: The spinning mold pushes molten metal outward. This action removes air bubbles and impurities. You get parts with fewer defects and higher strength.
• Uniform Wall Thickness: The centrifugal force spreads the metal evenly. You can make pipes, tubes, and rings with consistent walls.
• Good Surface Finish: The process gives you smooth surfaces. You often need less finishing work.
• Material Savings: You do not need extra cores for hollow parts. This saves you both time and material.
• Versatility: You can use many metals, such as steel, bronze, and aluminum.

Tip: Centrifugal metal casting works well when you need parts that must handle high pressure or stress.

Here is a quick table to show the main advantages:

Main Limitations

You should also know the limits of centrifugal metal casting. This process does not fit every project. Here are some main limitations:

• Shape Restrictions: You can mostly make round or cylindrical parts. Complex shapes are hard to produce.
• Equipment Cost: The machines and molds can cost a lot. Small shops may find it expensive.
• Size Limits: Very large or very small parts may be difficult to cast.
• Skill Needed: You must control speed, temperature, and pouring. Mistakes can cause defects.

Note: Always check if your part’s shape and size fit the process before you choose centrifugal metal casting.

Industrial Applications of Centrifugal Metal Casting

Pipe and Tube Manufacturing

You often see centrifugal metal casting used to make pipes and tubes. This process helps you create strong, hollow parts with smooth surfaces. When you need water pipes, gas lines, or sewer pipes, you want them to last a long time. Centrifugal metal casting gives you pipes that resist leaks and corrosion. You can also make pipes in many sizes and lengths. Factories use this method to produce pipes for buildings, factories, and even ships.

Tip: If you want pipes with even wall thickness and few defects, choose centrifugal metal casting.

Automotive and Aerospace Components

You can find many car and airplane parts made with this process. For example, you might use it to make brake drums, cylinder liners, or jet engine rings. These parts must handle high stress and heat. Centrifugal metal casting helps you get parts that are dense and strong. You also get smooth surfaces, which means less wear and longer life. In the aerospace industry, you need parts that are light but tough. This method lets you use special metals, like titanium, for high-performance parts.

Here is a table showing some common parts:

Industrial Machinery Parts

You also use centrifugal metal casting to make parts for machines. Many factories need gears, bushings, and rollers that last a long time. This process helps you make parts that can handle heavy loads and constant use. You can choose different metals for different jobs. For example, you might pick bronze for bushings or steel for rollers. When you use this method, you get parts with fewer cracks and better strength.

Note: Centrifugal metal casting helps you make reliable parts for many types of machines.

Specialized Applications

You can use centrifugal casting for more than just pipes and machine parts. This process helps you create unique items that need high strength, fine detail, or special materials. Many industries rely on these specialized applications to solve tough problems.

Jewelry and Art

You might see artists and jewelers use centrifugal casting to make rings, bracelets, and small sculptures. The spinning mold lets you fill tiny spaces with molten metal. You get sharp details and smooth surfaces. This method works well for gold, silver, and platinum. You can also make custom pieces that stand out.

Dental and Medical Devices

Dentists use this process to make crowns, bridges, and dental implants. The casting gives you strong, precise parts that fit perfectly in a patient’s mouth. In medicine, you can make surgical tools and implants from special alloys. These parts need to be safe and last a long time.

Aerospace and Defense

You can find centrifugal casting in the aerospace and defense fields. Engineers use it to make parts for rockets, satellites, and military equipment. These parts must handle high stress and extreme temperatures. The process lets you use metals like titanium and nickel alloys.

Electronics and Energy

Some companies use this method to make parts for electrical systems and power plants. You can create bushings, connectors, and even parts for nuclear reactors. The casting gives you reliable parts that work in harsh environments.

Tip: If you need parts with complex shapes, high purity, or special metals, centrifugal casting can help you meet strict standards.

Here is a quick list of specialized items you can make:

• Custom jewelry and art pieces
• Dental crowns and bridges
• Surgical implants
• Rocket and satellite parts
• Electrical connectors

Centrifugal metal casting gives you a way to make strong, dense metal parts with fewer defects. You can see how the process, machine types, and applications all work together to create reliable components. When you need high-quality cylindrical or high-performance parts, you can trust centrifugal metal casting to deliver results that meet strict standards.

FAQ

What metals can you use in centrifugal metal casting?

You can use many metals, such as steel, bronze, aluminum, copper, and even special alloys. The process works best with metals that melt easily and flow well into the mold.

How does centrifugal casting prevent air bubbles?

The spinning mold pushes molten metal outward. This force moves air and impurities away from the walls. You get a dense part with fewer bubbles or holes.

Can you make square or complex shapes with this method?

Centrifugal casting works best for round or cylindrical parts. If you need complex or square shapes, you may want to choose a different casting process.

Is centrifugal metal casting safe?

Always wear safety gear when working with hot metal and spinning machines. Follow safety rules to protect yourself from burns and injuries.
